mfm2 - Delay heaven

Delay heaven

99 €

Please be aware the Linux versions of our plug-ins are still considered beta. While the plug-ins are stable, we are not able to provide the same level of support for these products as we do for the macOS and Windows versions. Support is provided via the Linux and u-he communities on our forum.


MFM2: More Feedback Machine

MFM2 is our over-the-top digital delay plug-in. You can create anything from subtle textured echos to huge spacey reverbs, from wild tonal steps on a pad to rhythmic deconstruction of a drum track. As a regular delay MFM2 already offers as much control and inspiration as possible, while the advanced features in version 2.5 open up wider horizons. More feedback, more control, more inspiration!


MFM2 highlights…

Hover over the dots Dot below to learn about MFM2’s features

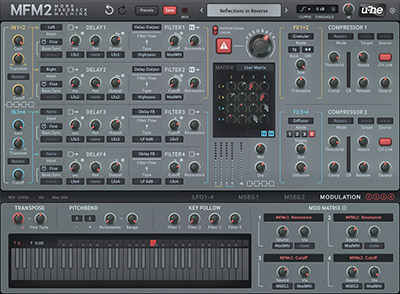

MFM2 UI
  • New in version 2.5: input section with gain, filter and transient balance
  • 4 delay lines with independent absolute time or tempo-synced modes
  • Each delay line has its own multimode filter: 2x lowpass, bandpass, 2x highpass, bandreject or allpass
  • 6 default delay configurations or user matrix (freely route signals between all 4 delay lines)
  • 4 syncable LFOs with 8 waveform options or user definable shapes
  • 2 syncable and loopable multi-stage envelope generator (MSEG) modulation sources
  • 4-slot modulation matrix with depth modulation from a second source
  • 2 channel-pair effects: soft clipper, bit crusher, phaser, frequency shifter, filter...
  • New in version 2.5: granular (pitch shift, reverse delays) and diffusor (reverb)
  • 2 channel-pair compressor/limiters, with peak or maximize modes
  • New in version 2.5: output shield (soft clipper) with strength and threshold options
  • Scalable UI from 70% to 200%
  • 400+ factory presets

At the time we released our current plugin versions, Avid could not provide an AAX SDK that would let us build Universal Binary AAX plugins. For this reason, we currently cannot support Pro Tools for Mac. Pro Tools for Windows is still supported.

For the time being, macOS Pro Tools users who are not running the native Silicon version should use the previous versions of our plugins, available from the Release Archive.

We hope to start work on native Silicon AAX support this year, as soon as our tight schedule allows. No ETA can be quoted yet.

Sights and sounds

MFM2.5 can do...

  • Ping-pong and panning delays
  • Filtered and frequency-shifted delays
  • Chorus, flanger, resonator
  • Reverb, diffusion and ambience
  • Granular effects
  • Degrading & distorting delays
  • Ducked and compressed delays
  • Endless loops
  • Keyboard-controlled (tuned) comb filter
  • Massive glitch effects
  • Any combination of the above
  • ...and much more

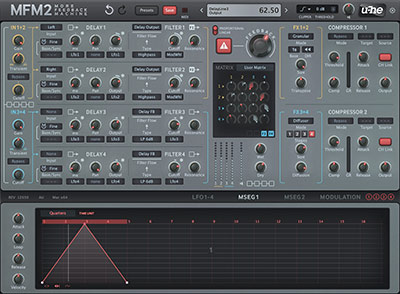

Screenshot MFM2.5 MSEG editor and modulation keyboard




Creating new effects in MFM2 can be quite complex, depending on how deep you want to go! Below is a very brief introduction so you can get some idea of what awaits you as MFM2 tweaker...

2 Input Processors

2 Input Processors

Input signals can be processed in pairs before being sent to the delay lines. The "Transient" controls suppress or boost spikes. The two non-resonant input filters can reduce the frequency range or even split the frequencies into two stereo bands with independent delay settings (set In 1+2 to Lowpass and In 3+4 to Highpass with the same Cutoff value).

4 Delay Lines

4 Delay Lines

Independent delay modes: synchronized, free, or even controlled by MIDI notes.

The dark field below each knob is a modulation source selector, and the amount of modulation is controlled by the "pip" which appears at the top right of the knob.

4 Main Filters

4 Main Filters

Resonant filters can be placed in various positions within the signal path. On offer here: 2x low pass, 2x high pass, band pass, band reject, allpass (phaser).

The Feedback Matrix

The Feedback Matrix

This is where you can specify how the delay lines feed into each other: The "User Matrix" option lets you freely route signals between all 4 delay lines.

The large control at the top adjusts the overall amount of feedback. At the bottom of the panel are the output level controls, allowing for normal and inverted polarity.

2 Effects

2 Effects

Pre-feedback processing. On offer here: limiter, bit crusher, phaser, frequency shifter, lowpass/highpass filter, granular pitch shifter, diffusor (reverb-ish).

2 Compressors

2 Compressors

The final polish! Peak or RMS mode compression. In PeakComp mode you can compress one pair of channels using a sidechain from the other.

Clipper

A shield to protect your ears and equipment from overly strong peaks

Configuration

Access to MIDI remote control pages as well as the global parameters

Inputs

Pre-process input signals: Gain, Transient balance and input filter

Filters

Delay lines include a resonant multimode filter with 7 filter types and 7 routing options

2 Compressors

Dynamic control with 2 modes: Peak compression (source can be specified) or maximize

4 Delay Lines

Set delay times (3 basic modes), choose the input signal, set output levels and pan positions for each delay line

Delay Matrix

Define signal routing between delay lines: 6 preset configurations, free routing via the User Matrix option

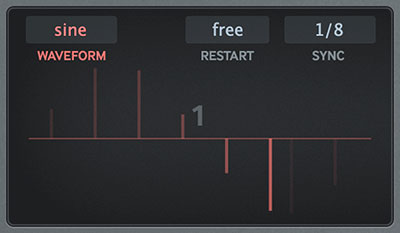

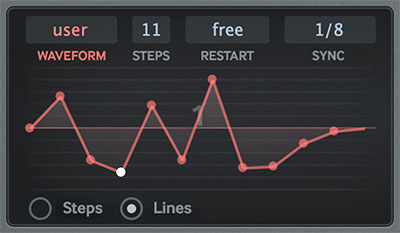

4 LFOs

Modulation sources:

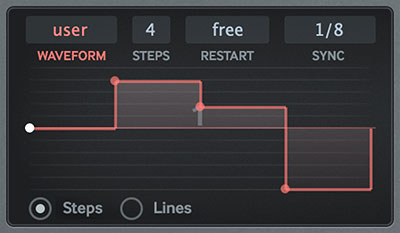

4 syncable low frequency oscillators with 8 preset waveform options or user defineable shape

2 MSEGs

Modulation sources:

2 synchronizable and loopable multi-segment envelope generators

Modulation Matrix

4-slot modulation matrix, with depth modulation from a second source

2 Channel Effects

Options include distortion and filter effects as well as Granular and Diffusor (good for reverb)

99 €

Download the demo and enter your serial number to unlock the full version. The demo version emits crackling sound at irregular intervals.

MFM2 2.5 (revision 13385)
Released September 6, 2022
Release notes

* About Linux: Before purchasing, please be aware the Linux versions of our plug-ins are still considered beta. While the plug-ins are stable, we are not able to provide the same level of support for these products as we do for the macOS and Windows versions. Support is provided via the Linux and u-he communities on our forum Link.

Requirements

Apple logo Mac OS X 10.10 or newer
or
Windows logo Windows 7 or newer
or
Linux logo Linux


  • Host software / DAW
  • 1GB RAM, more recommended
  • 1000 × 600 or larger display
  • 40-105 MB free disk space
  • Modern CPU required:
    Windows/Linux: Intel Nehalem or newer, AMD Bulldozer or newer
    Mac: Intel Nehalem or newer, Apple M1
  • Linux: glibc version 2.28 or newer

Formats

MFM2 is not a standalone product, it requires host software. MFM2 is compatible with nearly all DAWs.

macOS:
AUv2, VST2, VST3, CLAP (64-bit only)
temporarily no AAX (read more)

Windows:
VST2, VST3, AAX* (32-/64-bit)
CLAP (64-bit only)

* AAX requires Pro Tools 10.3.7 or later

VST compatible
VST is a trademark of Steinberg Media Technologies GmbH, registered in Europe and other countries.

User Guides


MFM2 user guide

Reviews & Articles




Downloads for MFM2

Try the latest builds of MFM2, which include improvements and bug fixes. Note: these are stable, but still beta versions.

Older MFM2 installers are in our release archive (for legacy systems).

<
>
